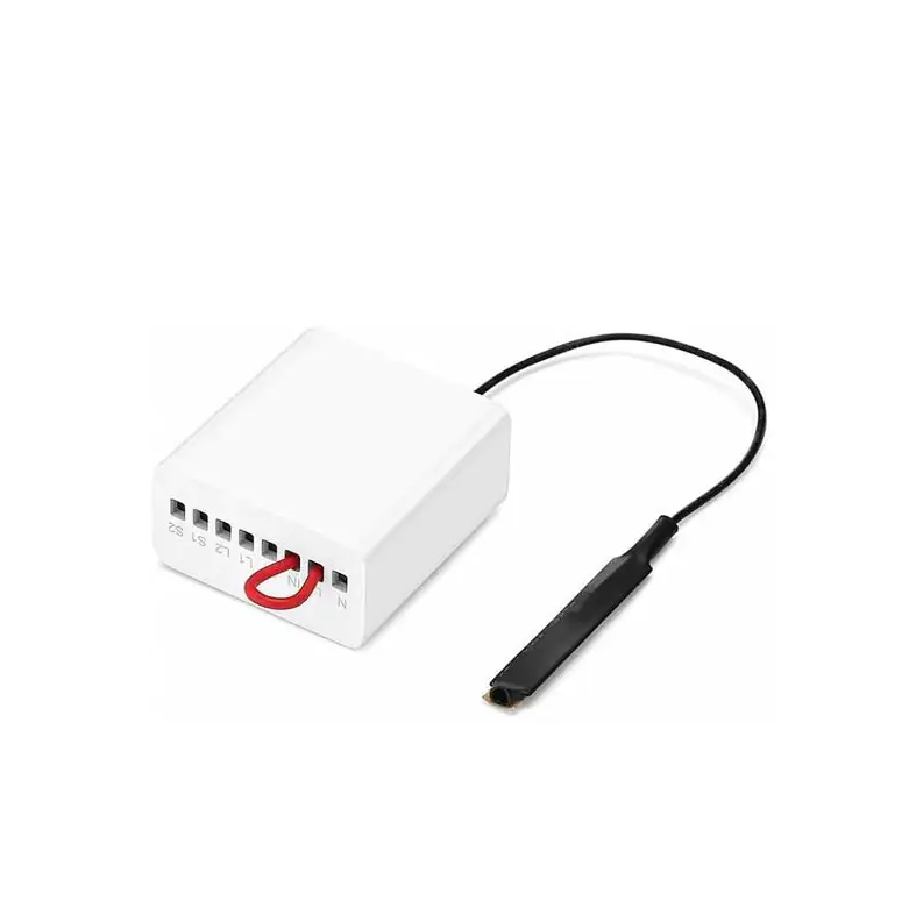

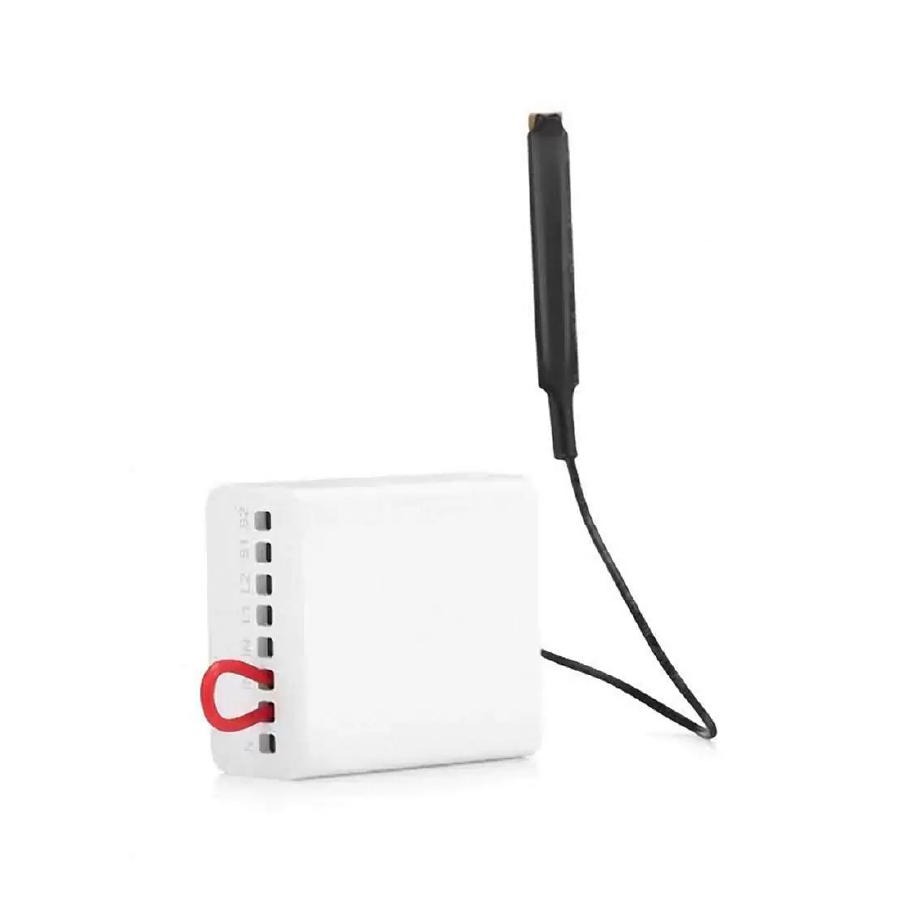

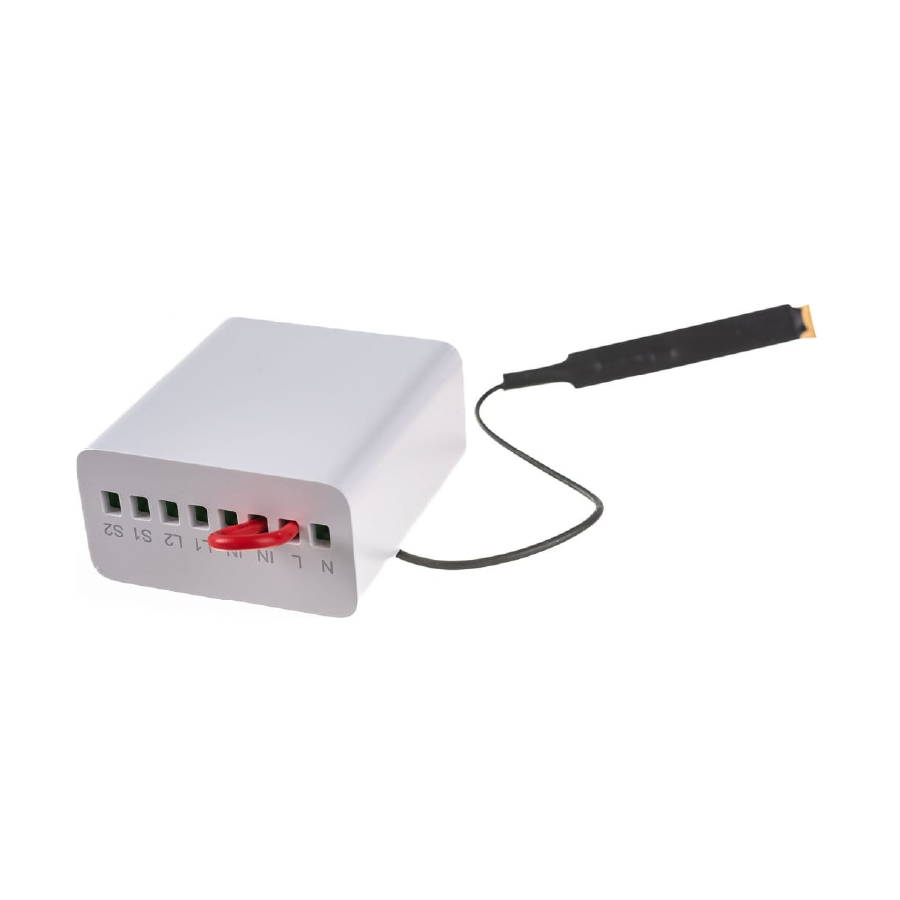

The Aqara 2 Way Relay Module LLKZMK11LM is a smart home component that supports ZigBee wireless technology, allowing for remote control of lighting or power to electrical devices. The module is installed in the power line and can be controlled via voice or a smartphone app. It also features energy consumption monitoring. The device supports input voltages from 110V to 240V and has built-in protection against overload, overheating, and voltage spikes. It can handle up to 2500W of power across two channels. The module operates in a wide temperature range from -10°C to 50°C and is compact in design.

Specifications:

• Type: Controlled relay
• Model: Aqara 2 Way Relay Module LLKZMK11LM
• Main Color: White
• Functions: Remote control of devices
• Mounting: Hidden
• Device Connection Type: Wireless
• Material: Plastic
• Operating Temperature: -10°C to +50°C
• Power Supply: 100V - 250V
• Maximum Load Power: 2.5 kW
• Neutral Available: Yes
• Data Transmission Protocol: ZigBee
• Remote Control via Smartphone: Yes
• App for Control: Aqara Home
• Smart Home Ecosystem: Apple HomeKit, Aqara Home, Sber, VK, Xiaomi Smart Home, Yandex
• Supported OS: Android, iOS
• Protection: Overload, Overheating, and Voltage Spike Protection
• Dimensions: 49.3 × 46 × 24 mm
• Maximum Humidity: 95%
