Technical Specifications

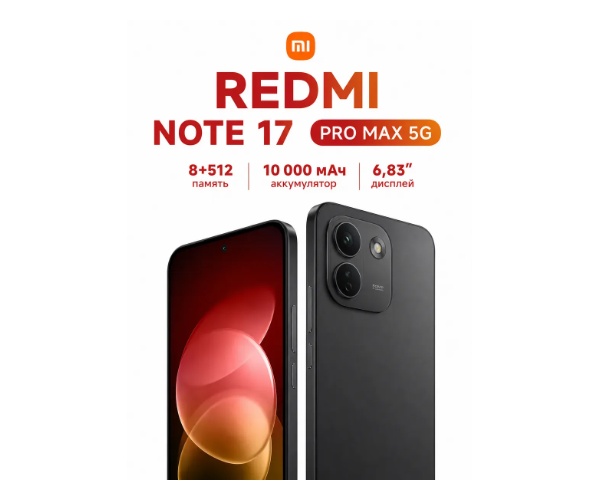

• Model: Redmi Note 17 Pro Max 5G
• Type: Smartphone
• Operating System: Xiaomi HyperOS 3 / Android 16
• Processor: Qualcomm Snapdragon 6 Gen 5
• Process Technology: 4 nm
• Number of Cores: 8
• Maximum CPU Frequency: Up to 2.6 GHz
• Graphics: Qualcomm Adreno GPU
• RAM: 8 GB LPDDR5X
• RAM Speed: Up to 6400 Mbps
• Internal Storage: 512 GB UFS 4.1
• UFS 4.1 Sequential Read/Write Speed: Up to 2100 MB/s
• Display Size: 6.83"
• Display Type: AMOLED
• Resolution: 2772 × 1280, 1.5K
• Refresh Rate: Up to 120 Hz
• Touch Sampling Rate: Up to 240 Hz
• Instantaneous Touch Sampling Rate: Up to 3200 Hz in Game Turbo mode
• Typical Brightness: 1060 nits
• HBM Brightness: Up to 2000 nits
• Maximum Brightness: Up to 3500 nits UHBM
• Color Depth: 12-bit
• Color Gamut: DCI-P3
• Pixel Density: 447 PPI
• Contrast Ratio: 8,000,000:1
• Protective Glass: Corning Gorilla Glass Victus 2
• PWM Dimming: 3840 Hz
• HDR: HDR10+, Dolby Vision
• Main Camera: 50 MP
• Optical Image Stabilization: OIS
• Main Camera Aperture: f/1.5
• Ultra-Wide Camera: 8 MP, f/2.2
• Main Camera Video: Up to 4K @ 30 fps
• Front Camera: 32 MP, f/2.2
• Front Camera Video: Up to 4K @ 30 fps
• Battery: Silicon-Carbon
• Battery Capacity: 10000 mAh for the Global version
• Fast Charging: 100 W HyperCharge
• Reverse Wired Charging: Up to 27 W
• Charging Port: USB Type-C
• Charging Support: PD 3.0 / PD 2.0
• Mobile Network: 5G / 4G / 3G / 2G
• SIM: Dual SIM, eSIM support depends on the region
• Wi-Fi: Wi-Fi 6, 2.4 / 5 GHz
• Bluetooth: 6.0
• NFC: Supported, availability depends on the region
• IR Blaster: Yes
• Fingerprint Sensor: In-display
• Speakers: Stereo
• Audio: Dolby Atmos, Hi-Res Audio
• Water and Dust Resistance: IP66 / IP68 / IP69 / IP69K for the Global version
• Dimensions: 163.44 × 78.27 × 8.57–8.65 mm
